Herreshoff #190112es [Dinghy for #569s Mashnee]

Particulars

Name: [Dinghy for #569s Mashnee]
Type: Columbia Sailing Dinghy
Designed by: NGH
Contract: 1901-9-4 ?
Construction: Wood
LOA: 11' 6" (3.51m)
Beam: 3' 11" (1.19m)
Centerboard: yes
Built for: Emmons, Robert W.

See also:

#569s Mashnee (1902, Extant)

Note: Particulars are primarily but not exclusively from the HMCo Construction Record. Supplementary information not from the Construction Record appears elsewhere in this record with a complete citation.

Model

Model number: 706
Model location: H.M.M. Model Room North Wall Right

Vessels from this model:

211 built, modeled by NGH

Original text on model:
"Original COLUMBIA lifeboat for 499 14' [long] scale 1/12 Nov. 1899 gig for #503 506, 507 [unreadable] (cut dinghy 520 16x14 7 1/2" frames dinghy for 624 scale 10 3.4 over 16 * 10-8 [unreadable] / 529, 532, 533, 534 16x14 add-on bow changed and shear raised remeasured Dec. 4, 1909. Boats for 692 and later" (Source: Original handwritten annotation on model. Undated.)

Model Description:
"14' lifeboat of 1899 for the cutter Columbia. Also used, with alterations to scale, mold spacing, freeboard, and with sailing rig added, for many other rowboats, sailing dinghies, and tenders. This shape became HMCo's standard for decades to follow." (Source: Bray, Maynard. 2004.)

Note: Vessels that appear in the records as not built, a cancelled contract, a study model, or as a model sailboat are listed but not counted in the list of vessels built from a model.

Drawings

Main drawing Dwg 028-023 [076-033] (HH.5.02021)

Explore all drawings relating to this boat.

List of drawings:
   Drawings believed to have been first drawn for, or being first referenced to
   Herreshoff #190112es [Dinghy for #569s Mashnee] are listed in bold.
   Click on Dwg number for preview, on HH number to see at M.I.T. Museum.

Dwg 028-023 [076-033] (HH.5.02021): Construction Dwg > 11'-6" Boat for Sailing and Rowing, Model of Columbia's Lifeboat Reduced 10/12 Scale (1901-08-28)

Source: Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass. Haffenreffer-Herreshoff Collection. Together with: Hasselbalch, Kurt with Frances Overcash and Angela Reddin. Guide to The Haffenreffer-Herreshoff Collection. Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass., 1997. Together with: Numerous additions and corrections by Claas van der Linde.
Note: The Haffenreffer-Herreshoff Collection is copyrighted by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass. Permission to incorporate information from it in the Herreshoff Catalogue Raisonné is gratefully acknowledged. The use of this information is permitted solely for research purposes. No part of it is to be published in any form whatsoever.

Images

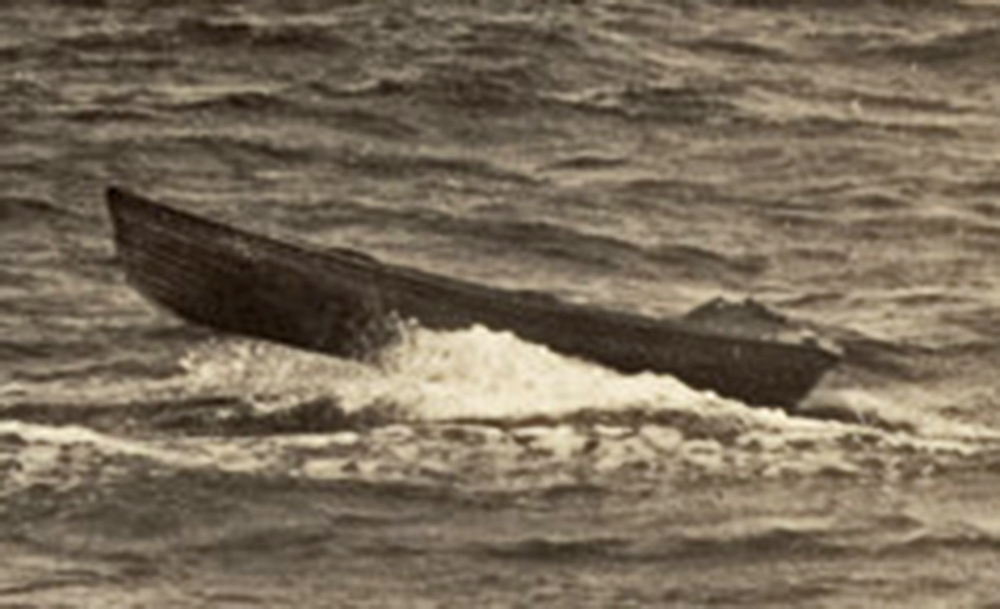

Stebbins, Nathaniel L. "[Dinghy for #569s Mashnee] [#190112es.]" Photograph (cropped detail), negative no. 13590, 1902.

Further Image Information

Created by: Stebbins, Nathaniel L.
Image Caption: "13590 Mashnee." [Cropped detail of a photo of Mashnee towing her dinghy which was taken during the cruise of the New York Yacht on the run from Newport to Vineyard Haven.]
Negative Number: 13590
Image Date: 1902-8-7
Collection: Historic New England (SPNEA) Collection, GUSN 280201. (Also in: Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass., acc. no. 10-054.)
Image is copyrighted: No known copyright restrictions

Supplement

Research Note(s)

"11'-6" Boat for Sailing. Made of Columbia's Lifeboat [unreadable]. Sheer raised 1 1/4" (on 12" scale) above figures in Book for 76-[unreadable]. Sheer raised 2 1/2" above [drawing] 76-17. Thwarts raised 2 1/2" above [drawing] 76-17. Leg of mutton sail. Yoke & Tiller. Keel, white oak, 1 3/16" wide x 1 7/16" deep. Apron, white oak, 2 1/2" wide x 7/16" deep. Timbers, white oak, 1/2" [unreadable], spaced 6". Gunwale, white oak, 1 3/16" x 7/16". Sheer strake, white oak, 3" x 7/8" x [?]32". Thwart strainers, white oak, 3/8" x 7/8". Stem, 1" x 2 1/2" sizee [?] white oak, steamed & bent. Stern, 3/4" butternut. Planking, 1/4" cedar lapped in narow strakes. Thwarts, 7/8" butternut. Foot-boards, 7[?]/16" cedar. [No. of boats built] 14, [When built] 1901+2, 560 class [14 Buzzards Bay 30-footers] [as per notes on drawing 28-23]." (Source: van der Linde, Claas. October 26, 2009.)

"This vessel's contract date was estimated from the date of the vessel it was made for. #569s Mashnee (for which this vessel was built) was contracted for 1901-09-04. Plan 28-23 from which this boat was built was drawn 1901-08." (Source: van der Linde, Claas. October 26, 2009.)

Note: Research notes contain information about a vessel that is often random and unedited but has been deemed useful for future research.
