Herreshoff #193402es [Unbuilt (??) Frostbite Dinghy]

Particulars

Name: [Unbuilt (??) Frostbite Dinghy]
Type: Frostbite Dinghy
Designed by: NGH
Not built, not assigned, cancelled, etc.: 1934-7-1
Construction: Wood
LOA: 11' 6" (3.51m)
Centerboard: yes

Note: Particulars are primarily but not exclusively from the HMCo Construction Record. Supplementary information not from the Construction Record appears elsewhere in this record with a complete citation.

Model

Model number: 1308
Model location: H.M.M. Workshop West Wall Right

Vessels from this model:
0 built, modeled by NGH

#193402es [Unbuilt (??) Frostbite Dinghy] (1934)

Original text on model:
"11 1/2 ft Dinghy July 1, 1934
11' 5" actual
[Two WL's marked] '525 lbs 489'
[Sheer line marked] 'sheer' " (Source: Original handwritten annotation on model. Undated.)

Related model(s):
Model 1305 by NGH (1933); sail

Model 1307 by NGH (1933); sail

Model 3105 by ASdeWH, or ASdeWH or NGH?, or ASdeWH (1934?); sail, 3 built from

Note: Vessels that appear in the records as not built, a cancelled contract, a study model, or as a model sailboat are listed but not counted in the list of vessels built from a model.

Drawings

Explore all drawings relating to this boat.

List of drawings:
   Drawings believed to have been first drawn for, or being first referenced to
   Herreshoff #193402es [Unbuilt (??) Frostbite Dinghy] are listed in bold.
   Click on Dwg number for preview, on HH number to see at M.I.T. Museum.

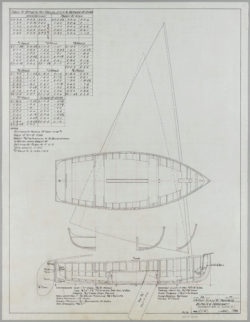

Dwg 028-079 (HH.5.02081); Construction Dwg > 11 1/2 ft. Class "B" Frostbite by N.G. Herreshoff (1934-07 ?)

Source: Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass. Haffenreffer-Herreshoff Collection. Together with: Hasselbalch, Kurt with Frances Overcash and Angela Reddin. Guide to The Haffenreffer-Herreshoff Collection. Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass., 1997. Together with: Numerous additions and corrections by Claas van der Linde.
Note: The Haffenreffer-Herreshoff Collection is copyrighted by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass. Permission to incorporate information from it in the Herreshoff Catalogue Raisonné is gratefully acknowledged. The use of this information is permitted solely for research purposes. No part of it is to be published in any form whatsoever.

Documents

Archival Documents

"[Item Description:] Handwritten (in ink) and penciled offsets table titled '11 1/2ft Class B Dinghy' Table of Offsets for Moulds, Stem and outside of Stern'. With penciled pantograph hull sections marked 'Sections at mould 18in apart with # 1 mould 12in aft of zero'. With notes 'Total length 11ft 5 1/4in' and 'Deduct 5/16in for Planking if to be lapstreak. If batten seamed 1/4in' and 'By N.G. Herreshoff, July 6, 1934'. The offsets are the same as on HMCo plan HH.5.02081 (028-079) for #193402es Frostbite Dinghy." (Source: Herreshoff, N.G. (creator). Offsets. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDE04_02630. Folder [no #]. 1934-07-06.)
①

"[Item Description:] Penciled offsets table on both sides of an envelope to 'Mr. N.G. Herreshoff'. Untitled, unidentified boat, undated. The offsets are the same as on HMCo plan HH.5.02081 (028-079) for #193402es Frostbite Dinghy and on handwritten offsets table titled '11 1/2ft Class B Dinghy' Table of Offsets for Moulds, Stem and outside of Stern. ... By N.G. Herreshoff, July 6, 1934'" (Source: Herreshoff, N.G. (creator). Penciled Offsets. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDE04_06630. Folder [no #]. No date (ca 1934-07-06).)
① ②

Note: This list of archival documents contains in an unedited form any and all which mention #193402es [Unbuilt (??) Frostbite Dinghy] even if just in a cursory way. Permission to digitize, transcribe and display is gratefully acknowledged.

Supplement

Research Note(s)

"There is no evidence that this frostbite dinghy was ever built." (Source: van der Linde, Claas. October 26, 2009.)

"#193402es Frostbite Dinghy and #1267s Frost Fish are built from different models. Overlaying of plans 28-79 for #193402es and plan 28-80 for Frost Fish shows the latter to have more vertical (plumb) bow and fuller lines forward." (Source: van der Linde, Claas. March 25, 2019.)

"This vessel's date was estimated from the original plan date. Plan 28-79 from which this boat was built was drawn 1934-07. The corresponding Model 1308 is dated July 1, 1934." (Source: van der Linde, Claas. October 26, 2009.)
