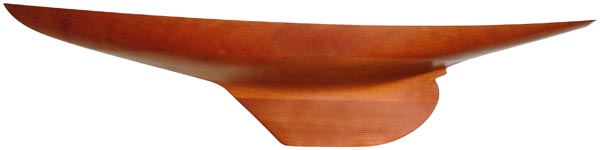

Model No. 713: Bar Harbor Class

Model No. 713


Model by: NGH
Made when: September 1902
Model length (ca.): 35.0" (88.9cm)
Power/Sail: S
Vessel Type: Bar Harbor Class
Hull Configuration: Keel
Model location: H.M.M. Model Room North Wall Right

Vessels from this model:
13 built, modeled by NGH
#592s Kuwana [Kewana, Kawana] (1902)
#593s Astrild (1902)
#594s Zara (1903, Extant)
#595s Joker (1903, Extant)
#596s Bat (1903)
#597s Ben (1903)
#598s Curlew (1903)
#599s Indian (1903, Extant)
#600s Flight (1903)
#601s Red Wing [Redwing] (1903)
#602s Cricket (1903, Extant)
#603s Scud (1903, Extant)
#604s Papoose III (1903)

Original text on model:
"Bar Harbor class No. 592-604 in class
30' 9" w.l. scale of lengths 15 7/8 per foot [arrow drawn by Sid with question mark]
Scale 3/4' = 1' lengths 12.5/12 of model pointing to deck under side of 1 1/8 deck" (Source: Original handwritten annotation on model. Undated.)

Model description:
"30' 9" lwl Bar Harbor 31-foot class sloops of 1903 of which thirteen were built. Several survive, and Indian is at the Herreshoff Marine Museum awaiting restoration." (Source: Bray, Maynard. 2004.)


Herreshoff Catalogue Raisonné.
