HMCo #492s [Dinghy for #493s Jilt]
Particulars
Name: [Dinghy for #493s Jilt]Type: Coquina Sailing Dinghy
Designed by: NGH
Contract: 1898-1-27 ?
Construction: Wood
LOA: 12' 6" (3.81m)
LWL: 11' 7" (3.53m)
Beam: 4' 6" (1.37m)
Draft: 0' 8" (0.20m)
Rig: Leg-O-Mutton
Centerboard: yes
Built for: Gay, William O.
Amount: $225.00
Note(s) in HMCo Construction Record: on moulds of sail tender #164. Dagger board. Sheer raised
See also:
Note: Particulars are primarily but not exclusively from the HMCo Construction Record. Supplementary information not from the Construction Record appears elsewhere in this record with a complete citation.
Model
Model number: 4Model location: H.M.M. Model Room East Wall
Vessels from this model:
30 built, modeled by NGH
Original text on model:
"COQUINA 1889 #404 1888
COQUINA 2nd 1892 #419
1896 #474 19 [sic, i.e. 16] 1\2 ft
827 lbs
Hull 279 centerboard rudder 10 oars 8
3 333 / 30 / 13 / 120 \ ballast & rig 140 310 \ 686." (Source: Original handwritten annotation on model. Undated.)
Model Description:
"#404 Coquina, 16'8" loa sailboat of 1889. Also used for #419 Coquina II of 1892 and, with modifications, for #474 Dude of 1896. See also first model for Coquina, seq 1225, not used." (Source: Bray, Maynard. 2004.)
Related model(s):
Model 1225 by NGH (1889?); sail, not built
Note: Vessels that appear in the records as not built, a cancelled contract, a study model, or as a model sailboat are listed but not counted in the list of vessels built from a model.
Drawings
![Main drawing Dwg 028-015 [075-057] (HH.5.02010)](../Images_Drawings/250px/HH.5.02010.jpg)
Explore all drawings relating to this boat.List of drawings:
Drawings believed to have been first drawn for, or being first referenced to
HMCo #492s [Dinghy for #493s Jilt] are listed in bold.
Click on Dwg number for preview, on HH number to see at M.I.T. Museum.
-
Dwg 130-053 (HH.5.10356): Sails > # 492 Violet (1898-01 ?)
-
Dwg 130-054 (HH.5.10357): Sails > # 492 Violet (1898-01-28 ?)
-
Dwg 028-015 [075-057] (HH.5.02010); Construction Dwg > 12'-6" Center Board (1898-01-29)
-
Dwg 080-059 (HH.5.05971): Spars for 492 (1898-02-14)
-
Dwg 127-054 (HH.5.09922): Sails > Sails Rowboat(531) & 492 (1898-02-22)
-
Dwg 060-037 (HH.5.04260): Centerboard for # 492 (See General Plan 75-57) (1898-10-27)
Note: The Haffenreffer-Herreshoff Collection is copyrighted by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass. Permission to incorporate information from it in the Herreshoff Catalogue Raisonné is gratefully acknowledged. The use of this information is permitted solely for research purposes. No part of it is to be published in any form whatsoever.
Documents
Archival Documents
"[Item Description:] Penciled pantograph hull sections titled '#461. 21ft. Final. Dec[ember] 6 [18]95. COCK ROBIN'. With calculations arriving at a total displacement of 6150lbs. With three displacement curves, one marked '#492 & 493 [sic, i.e. probably #493s JILT and #494s SINTRAM]' and '48.5cuft' and a note 'Total disp. 6260lbs. Disp. body part 5130[lbs]'." (Source: Herreshoff, N.G. (creator). Pantograph Hull Sections. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDE04_06210. Folder [no #]. 1895-12-06.)
① ② ③ ④
Note: This list of archival documents contains in an unedited form any and all which mention #492s [Dinghy for #493s Jilt] even if just in a cursory way. Permission to digitize, transcribe and display is gratefully acknowledged.
Supplement

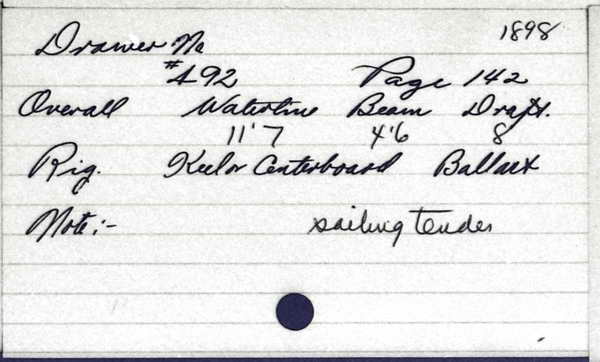

From the 1920 and earlier HMCo Index Cards at the MIT Museum
- Note: The vessel index cards comprise two sets of a total of some 3200 cards about vessels built by HMCo, with dimensions and information regarding drawings, later or former vessel names, and owners. They were compiled from HMCo's early days until 1920 and added to in later decades, apparently by Hart Nautical curator William A. Baker and his successors. While HMCo seems to have used only one set of index cards, all sorted by name and, where no name was available, by number, later users at MIT apparently divided them into two sets of cards, one sorted by vessel name, the other by vessel number and greatly expanded the number of cards. Original HMCo cards are usually lined and almost always punched with a hole at bottom center while later cards usually have no hole, are unlined, and often carry substantially less information. All cards are held by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass.
From the 1931 HMCo-published Owner's List
Type: J & M
Length: 11'7"
Owner: Gay, Wm. O.
Source: Herreshoff Manufacturing Company. "A Partial List of Herreshoff Clients." In: Herreshoff Manufacturing Company. Herreshoff Yachts. Bristol, Rhode Island, ca. 1931.

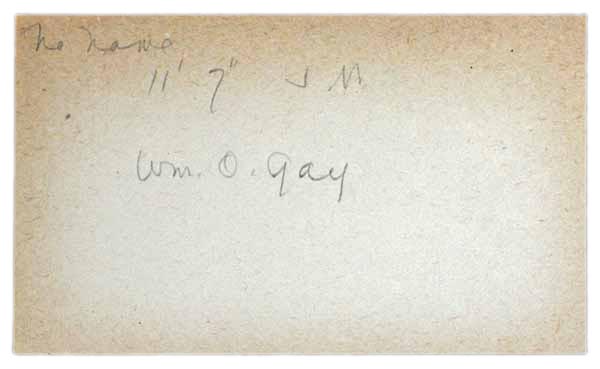

From the 1930s L. Francis Herreshoff Index Cards at the Herreshoff Marine Museum
- Note: The L. Francis Herreshoff index cards comprise a set of some 1200 cards about vessels built by HMCo, with dimensions and / or ownership information. Apparently compiled in the early 1930s, for later HMCo-built boats like the Fishers Island 23s or the Northeast Harbor 30s are not included. Added to in later decades, apparently by L. F. Herreshoff as well as his long-time secretary Muriel Vaughn and others. Also 46 cards of L. F. Herreshoff-designed vessels. The original set of index cards is held by the Herreshoff Marine Museum and permission to display is gratefully acknowledged.
From the 1953 HMCo Owner's List by L. Francis Herreshoff
Name: N/A
Type: 11' 7" J & M
Owner: William O. Gay
Row No.: 786
Source: Herreshoff, L. Francis. "Partial List of Herreshoff-Built Boats." In: Herreshoff, L. Francis. Capt. Nat Herreshoff. The Wizard of Bristol. New York, 1953, p. 325-343.
From the 2000 (ca.) Transcription of the HMCo Construction Record by Vermilya/Bray
Month: Jan
Day: 27
Year: 1898
E/P/S: S
No.: 0492
LW: 11' 7"
B: 4' 6"
D: 8" [?]
CB: y
Amount: 225.00
Notes Constr. Record: Daggerboard On moulds of sail Tender 164 Shear raised.
Last Name: Gay
First Name: W. O.
Source: Vermilya, Peter and Maynard Bray. "Transcription of the HMCo. Construction Record." Unpublished database, ca. 2000.
Note: The transcription of the HMCo Construction Record by Peter Vermilya and Maynard Bray was performed independently (and earlier) than that by Claas van der Linde. A comparison of the two transcriptions can be particularly useful in those many cases where the handwriting in the Construction Record is difficult to decipher.
Research Note(s)
"Hull #492s is an 11' 7" LWL tender for W. O. Gay which apparently was a tender for Jilt #493s. Violet is #491s and 15' LWL. This is apparently a reference to #492s, the tender for W. O. Gay. Note that the plan titles in M.I.T. plans database are also confusing." (Source: van der Linde, Claas. October 26, 2009.)
"Plan 28-15 (formerly 75-57) from which this boat was built was drawn 1898-01. #493s Jilt (for which this vessel was built) was contracted for 1898-01-27." (Source: van der Linde, Claas. October 26, 2009.)
Note: Research notes contain information about a vessel that is often random and unedited but has been deemed useful for future research.
