HMCo #144p [Machinery only for cutter Portsmouth Navy Yard]

Particulars

Construction_Record_Title.jpgName: [Machinery only for cutter Portsmouth Navy Yard]
Type: Steam Engine Only
Finished: 1887-7
Construction: N/A
LOA: 28' (8.53m)
Propulsion: Steam, Herreshoff, Double exp., 2 cyl. (3 1/2" & 6" bore x 6" stroke); Comp. cond.
Boiler: Square; Size D.
Built for: U.S. Portsmouth Navy Yard
Note(s) in HMCo Construction Record: Mach'y only for cutter. Portsmouth Navy Yard

Note: Particulars are primarily but not exclusively from the HMCo Construction Record. Supplementary information not from the Construction Record appears elsewhere in this record with a complete citation.


Drawings

Main drawing Dwg 003-043 (HH.5.00183.1) Explore all drawings relating to this boat.

List of drawings:
   Drawings believed to have been first drawn for, or being first referenced to
   HMCo #144p [Machinery only for cutter Portsmouth Navy Yard] are listed in bold.
   Click on Dwg number for preview, on HH number to see at M.I.T. Museum.
  1. Dwg 054-023 (HH.5.03956): Copper Condenser Pipes for Str. 106 (1884-02-08)
  2. Dwg 007-022 (HH.5.00655): Shaft for Str # 117 (1884-09-10)
  3. Dwg 003-043 (HH.5.00183.1): Machinery Arrangement, Launch - Stm, 28' O.A., Cutter (1887-06-07)
  4. Dwg 007-045 (HH.5.00673): Shaft for Stm 144, 28' U.S. Launch (1887-06-13)
  5. Dwg 003-044 (HH.5.00183.2): Machinery Arrangement, Launch - Stm [For U.S.N.?] (1887-06-17)
Source: Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass. Haffenreffer-Herreshoff Collection. Together with: Hasselbalch, Kurt with Frances Overcash and Angela Reddin. Guide to The Haffenreffer-Herreshoff Collection. Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass., 1997. Together with: Numerous additions and corrections by Claas van der Linde.
Note: The Haffenreffer-Herreshoff Collection is copyrighted by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass. Permission to incorporate information from it in the Herreshoff Catalogue Raisonné is gratefully acknowledged. The use of this information is permitted solely for research purposes. No part of it is to be published in any form whatsoever.

Documents

Archival Documents

"[Item Description:] Casting Book # 4, steamers #40p, #54p, #57p, #63p, #67p, #70p, #79p, #89p, #92p, #99p, #100p, #101p, #102p, #103p, #104p, #105p, #106p, #107p, #108p, #109p, #110p, #111p, #112p, #113p, #114p, #115p, #116p, #117p, #118p, #119p, #120p, #121p, #122p, #123p, #124p, #125p, #126p, #127p, #128p, #129p, #130p, #131p, #132p, #133p, #134p, #135p, #136p, #137p, #138p, #139p, #140p, #141p, #142p, #143p, #144p, #145p, #146p, #147p [castings by hull number; front page shows summary size and engine and boiler data for steamers 99 thru 146 as well as repair data for steamers #40p, #54p, #57p, #63p, #67p, #70p, #79p, #89p, #92p, #118p, and #128p]. Undated, vessels mentioned were built between 1878 and 1887. Dates mentioned for repairs range from 1885 to 1887. Note considerable informational overlap with Casting Book # 1, which as in this book also contains data for #99p through #116p, although it appears (!) that Book # 4 lists more patterns per boat than Book # 1. Likewise, considerable overlap with Casting Books # 2 and # 3 which also contain data for boats that are also listed in book # 4. It may well be that information in Book # 4 was copied from books # 1, # 2 and 3." (Source: MIT Museum, Hart Nautical Collections, Haffenreffer-Herreshoff Collection Item HH.6.120-07. Castings Book 4. Box HAFH.6.4B, Folder Casting Record Books Vessel Castings Book 4. No date (1878 to 1887).)



"N/A"

Note: This list of archival documents contains in an unedited form any and all which mention #144p [Machinery only for cutter Portsmouth Navy Yard] even if just in a cursory way. Permission to digitize, transcribe and display is gratefully acknowledged.


Supplement

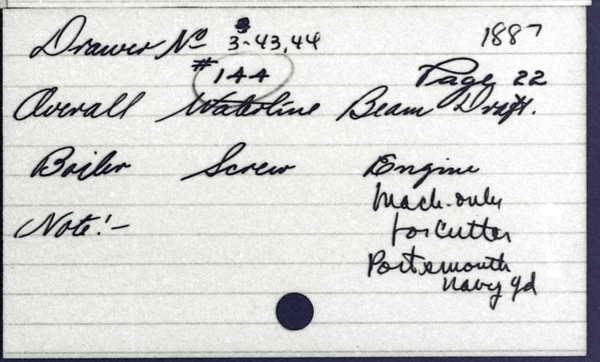

From the 1920 and earlier HMCo Index Cards at the MIT Museum
