HMCo #201p [Steam Tender for U.S. Coast Survey]
Particulars
Name: [Steam Tender for U.S. Coast Survey]Type: Steam Launch
Designed by: NGH
Contract: 1898-11
Launch: 1899-6-15
Construction: Wood
LOA: 28' (8.53m)
Beam: 6' 3" (1.91m)
Propulsion: Steam, Herreshoff, 48 h.p. Triple exp., 3 cyl. (3 1/2" & 5" & 8" bore x 4 1/2" stroke)
Boiler: Bent Tube
Propeller: Diameter 28"
Built for: U.S. Government [Dr. Hopkins]
Note(s) in HMCo Construction Record: Same as #199 for Dr. Hopkins. Government No. 328
Note: Particulars are primarily but not exclusively from the HMCo Construction Record. Supplementary information not from the Construction Record appears elsewhere in this record with a complete citation.
Model
Model number: 424Model location: H.M.M. Model Room West Wall Left
Vessels from this model:
30 built, modeled by NGH
Original text on model:
"[#197] Model made 1897 and changed in fall 1897 26' long frame spaces 9 3/4
[#198] 198 ditto everything
[#199] 199 28' long frame spaces 10 1/2
[#200] 200 ditto all the way
[#201] 201 ditto all the way
[#202] 202 30' long frames spaces 10 1/2
[#204] 204 ditto all the way
[#227] 227 30 YACOMA [sic, i.e. Yacona]
[#233] no number [should be 233] 28 DELEWARE
[#238] 239 [should be 238] 28 US EAGLE
[#239] dash [should be 239] 26" [should be 28] VIXEN
[#240] 240 30' by 5' "240" gasoline
[#246] 246 28' USN
[#262] 262 28' M plant [unreadable name]
[#263] 263 34' Cassandra
[#265] 34? J.B.H. Premier gasoline [i.e. #265]
[#???] ? 34 by 5 gasoline [this is apparently another reference to #265p Premier]
[#270] ? 28 WANDERER [should be 270]
[#???] ? 34' ILONDA ? [sic, i.e. Morton Plant's steamyacht IOLANDA] 1909
[#255] also 2 [unreadable] for ELECTRA [sic, i.e. #255 and #257] and 1 for ILONDA [sic, i.e. Morton Plant's steamyacht IOLANDA]
[#257]
[#272?]
[#273] 273 35' ILONDA [sic, i.e. Morton Plant's steamyacht IOLANDA]
[#274] 274 Sept. 1910 Cuban [sic, i.e. Haulrey Jr.]
[#275] 275 Oct 1910 28' USN SCORPION" (Source: Original handwritten annotation on model. Undated.)
Model Description:
"26' steam launch of 1898 for the coast survey vessel Yankton. Others built of various sizes over the next dozen years, with scale changes, including the 30' gasoline launch 240 that is now in the Herreshoff Marine Museum's Hall of Boats." (Source: Bray, Maynard. 2004.)
Note: Vessels that appear in the records as not built, a cancelled contract, a study model, or as a model sailboat are listed but not counted in the list of vessels built from a model.
Offsets
Offset booklet number(s): HH.4.030
Offset booklet contents:
#198 - #202, #233, #237 - #242, #246, #263, #266, #271 [steam & gasoline launches].
Offset Booklet(s) in Haffenreffer-Herreshoff Collection. Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass. (Restricted access --- see curator.)
Drawings
Explore all drawings relating to this boat.List of drawings:
Drawings believed to have been first drawn for, or being first referenced to
HMCo #201p [Steam Tender for U.S. Coast Survey] are listed in bold.
Click on Dwg number for preview, on HH number to see at M.I.T. Museum.
-
Dwg 043-037 (HH.5.03387); Boiler for No. 197 (1898-06-21)
-
Dwg 002-011 (HH.5.00011); Construction Dwg > Steam Launch # 199, 28' Long (1898-11-21)
-
Dwg 008-022 (HH.5.00720): Shaft for 28' Launch 199, 200, 201 (1898-11-21)
-
Dwg 002-012 (HH.5.00012): Construction Dwg > 30 ft. Steam Launch # 202 (1898-12-21)
Note: The Haffenreffer-Herreshoff Collection is copyrighted by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass. Permission to incorporate information from it in the Herreshoff Catalogue Raisonné is gratefully acknowledged. The use of this information is permitted solely for research purposes. No part of it is to be published in any form whatsoever.
Documents
Nathanael G. Herreshoff
"[1899-04-02] Sun 2: Gale [from the] NNW & cold. Dr. Hopkins [responsible for #201p Steam Tender for U.S. Government] here. ...
[1899-06-15] Thu 15: Fog last night. Warm & sultry [with] SSW [wind]. L[igh]t shower in evening, 1st in 3 weeks nearly. Launched 28 ft launch for Dr. Hopkins [#201p Steam Tender for U.S. Government]. " (Source: Herreshoff, Nathanael G. Diary, 1899. Manuscript (excerpts). Diary access courtesy of Halsey C. Herreshoff.)
"201 [#201p]. 28ft. 14.25[mph = 12.38kn]." (Source: Herreshoff, N. G. Penciled Note on Verso of Envelope titled 'Trials of 26[ft], 28[ft] & 30[ft] Launches. 1898 - 1912. N.G.H.'. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum. No date, September 28, 1920 or later.)
Archival Documents
"N/A"
"[Item Transcription:] Handwritten (mostly in pencil but also in ink) trials booklet titled '1898 - 1909'. Relevant contents:
§6: #201p [STEAM TENDER FOR U.S. COAST SURVEY] Trial Run mean speed 14.25mph (1899-06-15)." (Source: Herreshoff, N.G. (creator). Trials Booklet. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDE09_00060. Folder [no #]. 1898-09 to 1911-04.)
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㊱ ㊲ ㊳ ㊴ ㊵ ㊶ ㊷ ㊸ ㊹ ㊺ ㊻ ㊼ ㊽ ㊾ ㊿
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪
"[Item Transcription:] [Penciled trial run summary on verso of envelope to NGH in Bristol, R. I. postmarked September 27, 1920:] Trials of 26[ft], 28[ft] & 30[ft] Launches. 1898 - 1912. N.G.H.
197 [#197p]. 26ft. 13.10[mph = 11.38kn]. 225lbs.
198 [#198p]. 26ft. 12.49[mph = 10.85kn].
199 [#199p]. 28ft. 13.02[mph = 11.31kn]. 210lbs.
199 [#199p]. 28ft. 16.02[mph = 13.92kn]. 240lbs.
202 [#202p]. 30ft. 15.35[mph = 13.34kn]. 235lbs.
202 [#202p]. 30ft. 15.50[mph = 13.47kn]. 245lbs.
200 [#200p]. 28ft. 14.35[mph = 12.47kn].
201 [#201p]. 28ft. 14.25[mph = 12.38kn].
214 [#214p]. 26ft. 14.60[mph = 12.69kn]. 240lbs.
214 [#214p]. 26ft. 13.47[mph = 11.71kn]. about 235lbs.
220 [#220p]. 28ft. 14.98[mph = 13.02kn].
227 [#227p]. [30ft]. 13.82[mph = 12.01kn].
?. 28ft. 14.50[mph = 12.60kn].
239 [#239p]. 28ft. 13.22[mph = 11.49kn]. Required 10k[nots].
?. 26ft. 12.50[mph = 10.86kn].
239 [#239p]. 28ft. 12.40[mph = 10.78kn]. Not full speed.
246 [#246p]. 28ft. 13.55[mph = 11.77kn].
?. 28ft. 14.46[mph = 12.57kn].
275 [#275p]. 28ft. 10.80[mph = 9.38kn]. Not full speed.
274 [#274p]. 27ft. 14.66[mph = 12.74kn]. [More calculations on other side.] [Note: Every launch listed above was built from Model 424 --- as if this was an attempt to assess the speed of launches built from this model and thus judge the capabilities of the model.]" (Source: Herreshoff, N. G. (creator). Penciled Note. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDE03_03510. Folder [no #]. No date (1920-09-28 or later).)
① ②
Note: This list of archival documents contains in an unedited form any and all which mention #201p [Steam Tender for U.S. Coast Survey] even if just in a cursory way. Permission to digitize, transcribe and display is gratefully acknowledged.
Images
-
Further Image Information
Created by: Anon.

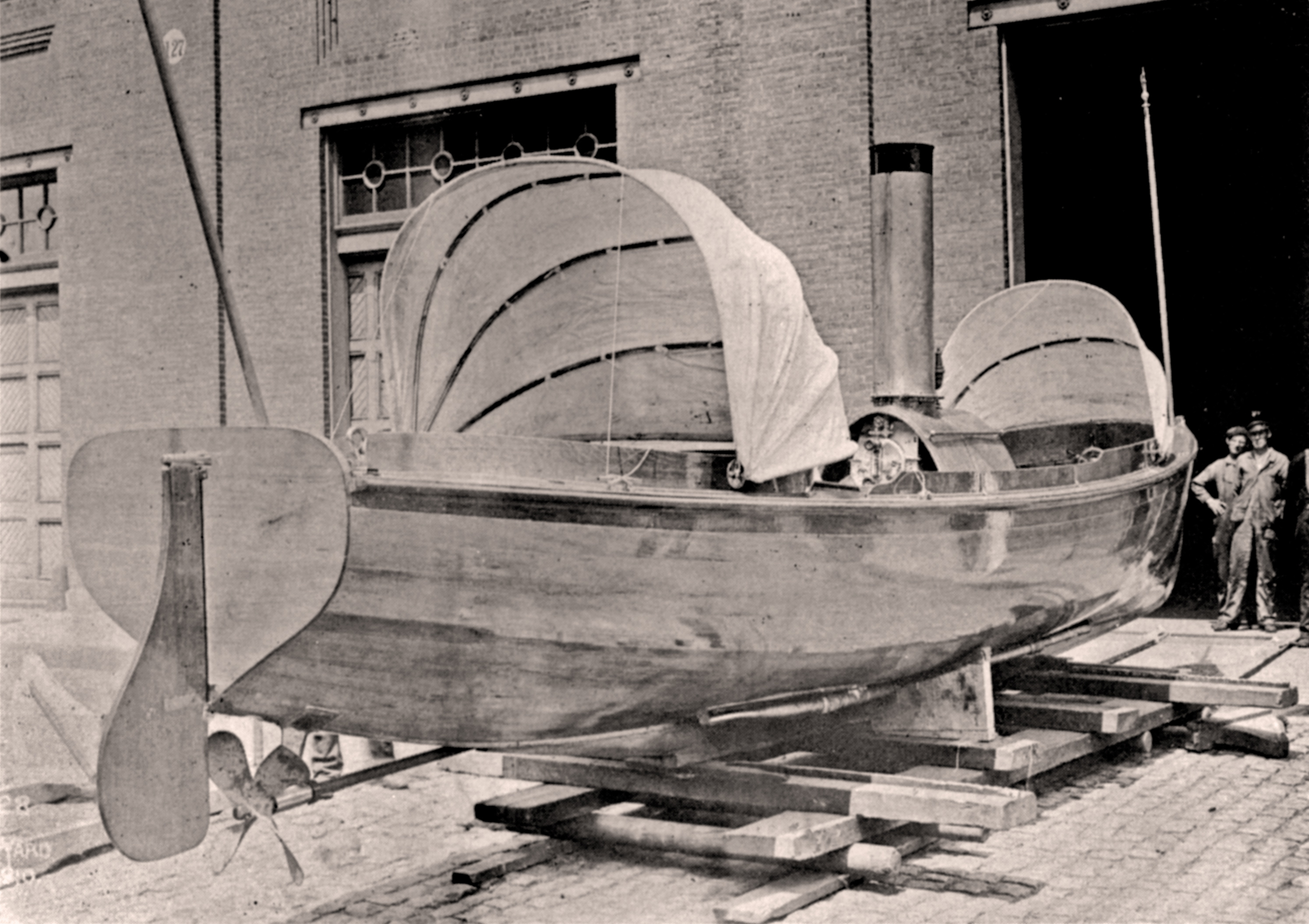

Image Caption: "Steamer #728, photographed at the New York Navy Yard on July 21, 1910, is proof that not all senior officers were satisfied with the standard issue Navy cutters. She is a Herreshoff 28-footer, with a beautiful little 3-drum WT boiler (see Steamboats, January-February, 1961, p. 261) and an encased triple expansion engine designed for 250 psi working pressure." [Original caption in magazine article. Note that there is no certainty whatsoever which launch these photos show. The original photo appears to be lost but it certainly shows a Herreshoff launch and apparently one built from model 424. The date seems to indicate that the launch must have been built before July 1910. If we only consider launches built for the U.S. Navy from model 424 this would leave as likely possibilties #238p [Launch for U.S.S. Eagle], #239p [Launch for U.S.S. Vixen], or #246p [Steam Launch for U.S.S. Yankton]. All three were former steam yachts which had been was sold to the U.S. Navy in 1898 at the time of the Spanish-American War. If only we could note to which launch the U.S. Government assigned the number 728! There is another possibility and that arises if we also consider launches built for the U.S. Fish Commission. The HMCo Construction Record for #201p carries a note 'Government No 328' which bears a certain similarity with 'Steamer #728' in the original caption --- but not more. An overlay of the broadside photo with construction plan 2- 33 (1903-09-26) from which launch #201p was built shows strong similarities, but also quite a few differences, including different lifting hook positions. More research is certainly necessary!]
Image Date: 1910-7-21
Published in: Durham, Bill. "Steamboats and Modern Steam Launches." March-April 1963, p. 17.
Image is copyrighted: No known restrictions
-
Further Image Information
Created by: Anon.

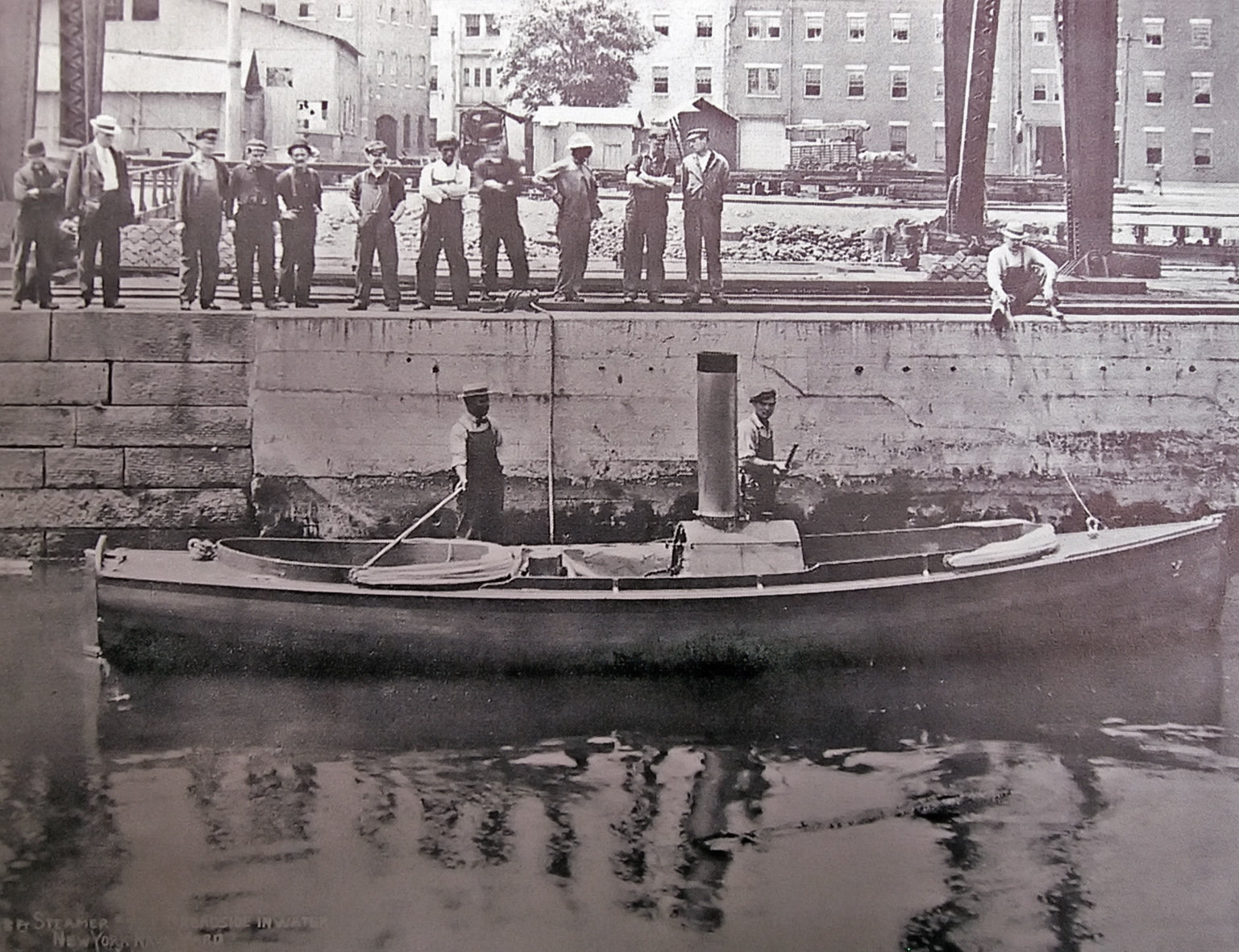

Image Caption: "Steamer #728, photographed in the water at the New York Navy Yard on July 21, 1910. Photo apparently taken shortly after one of the same boat on the hard." [Original caption in magazine article. Note that there is no certainty whatsoever which launch these photos show. The original photo appears to be lost but it certainly shows a Herreshoff launch and apparently one built from model 424. The date seems to indicate that the launch must have been built before July 1910. If we only consider launches built for the U.S. Navy from model 424 this would leave as likely possibilties #238p [Launch for U.S.S. Eagle], #239p [Launch for U.S.S. Vixen], or #246p [Steam Launch for U.S.S. Yankton]. All three were former steam yachts which had been was sold to the U.S. Navy in 1898 at the time of the Spanish-American War. If only we could note to which launch the U.S. Government assigned the number 728! There is another possibility and that arises if we also consider launches built for the U.S. Fish Commission. The HMCo Construction Record for #201p carries a note 'Government No 328' which bears a certain similarity with 'Steamer #728' in the original caption --- but not more. An overlay of the broadside photo with construction plan 2- 33 (1903-09-26) from which launch #201p was built shows strong similarities, but also quite a few differences, including different lifting hook positions. More research is certainly necessary!]
Image Date: 1910-7-21 ?
Published in: Durham, Bill. "Standard Boats of the United States Navy. 1900-1915." Seattle, 1963, no page no.
Image is copyrighted: No known restrictions
Supplement

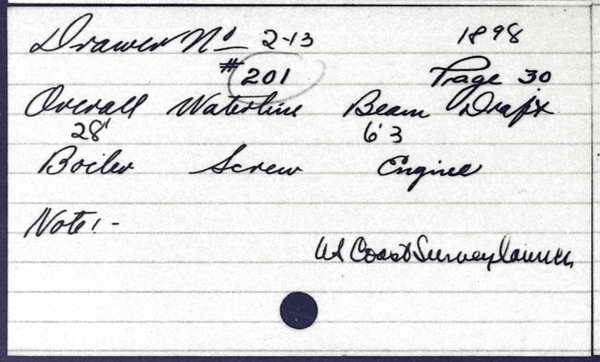

From the 1920 and earlier HMCo Index Cards at the MIT Museum
- Note: The vessel index cards comprise two sets of a total of some 3200 cards about vessels built by HMCo, with dimensions and information regarding drawings, later or former vessel names, and owners. They were compiled from HMCo's early days until 1920 and added to in later decades, apparently by Hart Nautical curator William A. Baker and his successors. While HMCo seems to have used only one set of index cards, all sorted by name and, where no name was available, by number, later users at MIT apparently divided them into two sets of cards, one sorted by vessel name, the other by vessel number and greatly expanded the number of cards. Original HMCo cards are usually lined and almost always punched with a hole at bottom center while later cards usually have no hole, are unlined, and often carry substantially less information. All cards are held by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass.

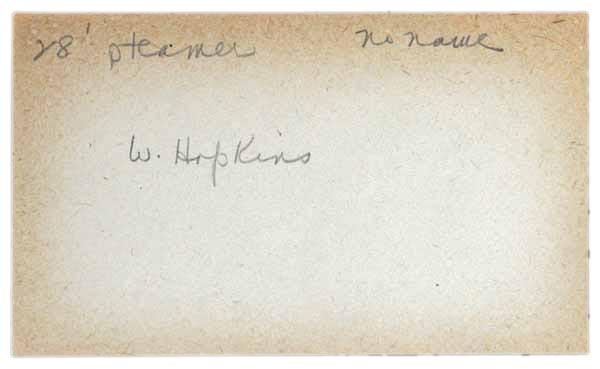

From the 1930s L. Francis Herreshoff Index Cards at the Herreshoff Marine Museum
