HMCo #274p Haulrey Jr. [Launch for St. S. Hatuey / Houtrey]

"Sept[ember] 16, 1910
Trial of No. 274, 27ft Launch built to order of Bath Iron Works for the Cuban Coast Guard ship which was formerly a yacht.
Launch is similar to #199 and many others except 1ft shorter.
On 1/2 mile course in Harbor (S half).
Low water, wind 20[mph] NE. 3 [persons] onboard. Bituminous coal. Av[erage] st[eam] about 245[lbs] & vac[uum] 23 1/2[in]
[Followed by tabulated trial run data with mean speed being 14.66mph = 12.55kn (sic, i.e. 12.74kn)]
Everything working well. Bath Iron W[orks] represented by Mr. Wheatherbee[?]." (Source: Herreshoff, N. G. Handwritten note in Trials Booklet '1898 - 1909' under date of September 16, 1910. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum.)

"... No. 274 [#274p] - 1910. 27ft Steam Lauch for Bath Iron Works. 2485.64 [Time & Materials] + 33 1/3 [% Shop Overhead] x 30% [Profit Margin] = [$]4308.45. [Time & Mat.:] 2485.64. [Contract Price:] 4300.00 ..." (Source: Herreshoff, N.G. Penciled untitled calculations, apparently made to determine appropriate profit margins for future cost estimates, after the death of his brother J.B. Herreshoff. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum. Undated, between 1915 (when #313p, the latest boat on this list, was built) and 1919 (when #367p CORSAIR, the first launch not on this list, was built and a price for her had to be determined).)

"274 [#274p]. 27ft. 14.66[mph = 12.74kn]." (Source: Herreshoff, N. G. Penciled Note on Verso of Envelope titled 'Trials of 26[ft], 28[ft] & 30[ft] Launches. 1898 - 1912. N.G.H.'. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum. No date, September 28, 1920 or later.)

"[Item Transcription:] Handwritten (mostly in pencil but also in ink) trials booklet titled '1898 - 1909'. Relevant contents:
§58: #274p HAULREY JR. [LAUNCH FOR ST. S. HAULREY] Trial Run mean speed 14.66mph = 12.55kn (1910-09-16)." (Source: Herreshoff, N.G. (creator). Trials Booklet. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDE09_00060. Folder [no #]. 1898-09 to 1911-04.)
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㊱ ㊲ ㊳ ㊴ ㊵ ㊶ ㊷ ㊸ ㊹ ㊺ ㊻ ㊼ ㊽ ㊾ ㊿
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

"[Item Transcription:] [Penciled calculations, apparently made by NGH to determine appropriate profit margins for future cost estimates, after the death of JBH:]
No. 313 [#313p] - 1915. 26ft Steam Lauch for CAROLA. 2255.93 [Time & Materials] + 33 1/3 [% Shop Overhead] x 50% [Profit Margin] = [$]4511.86. [Time & Mat.:] 2255.93. [Contract Price:] 4500.00
No. 294 [#294p] - 1914. 30ft Steam Lauch, Oil burning for V. Astor. 2423.49 [Time & Materials] + 33 1/3 [% Shop Overhead] x 50% [Profit Margin] = [$]4845.48. [Time & Mat.:] 2423.49. [Contract Price:] 4875.00
No. 274 [#274p] - 1910. 27ft Steam Lauch for Bath Iron Works. 2485.64 [Time & Materials] + 33 1/3 [% Shop Overhead] x 30% [Profit Margin] = [$]4308.45. [Time & Mat.:] 2485.64. [Contract Price:] 4300.00
No. 270 [#270p] - 1909. 27 1/2ft Steam Lauch for H.A.C. Taylor. 2293.59 [Time & Materials] + 33 1/3 [% Shop Overhead] x 40% [Profit Margin] = [$]4271.37. [Time & Mat.:] 2293.59. [Contract Price:] 4250.00
No. 298 [#298p] - 1914. 32ft Motor Launch for WAYFARER. Premier Motor. 3045.99 [Time & Materials] + 33 1/3 [% Shop Overhead] x 30% [Profit Margin] = [$]5257.72. [Time & Mat.:] 3045.99. [Contract Price:] 5250.00
No. 297 [#297p] - 1914. 30ft Motor Launch for WAYFARER. Stirling Motor. 2327.49 [Time & Materials] + 33 1/3 [% Shop Overhead] x 37% [Profit Margin] = [$]4251.54. [Time & Mat.:] 2327.49. [Contract Price:] 4250.00
No. 282 [#282p] - 1911. 35ft Motor Launch. 45/65 Sterling. CORSAIR. 3514.72 [Time & Materials] + 33 1/3 [% Shop Overhead] x 44% [Profit Margin] = [$]6748.26. [Time & Mat.:] 3514.72. [Contract Price:] 6750.00
No. 277 [#277p] - 1911. 30ft Motor Launch ISABEL (for LCL [L.C. Ledyard] by J.B. Webb). 2573.00 [Time & Materials] + 33 1/3 [% Shop Overhead] x 75% [Profit Margin] = [$]5903.67. [Time & Mat.:] 2573.00. [Contract Price:] 6000.00
No. 273 [#273p] - 1910. 30ft Motor Launch for M.F. Plant (Premier). 2576.78 [Time & Materials] + 33 1/3 [% Shop Overhead] x 60% [Profit Margin] = [$]5497.14. [Time & Mat.:] 2576.78. [Contract Price:] 5500.00
No. 278 [#278p] - 1910. 35ft Motor (Ideal) stock boat sold to WESTWARD. 2114.46 [Time & Materials] + 33 1/3 [% Shop Overhead] x 40% [Profit Margin] = [$]3947.00. [Time & Mat.:] 2114.46. [Contract Price:] 4000.00
No. 265 [#265p] - 1908. 34ft Motor (Premier) [for] NORTH STAR. 2259.20 [Time & Materials] + 33 1/3 [% Shop Overhead] x 18% [sic, i.e. 6% Profit Margin] = [$]3199.04. [Time & Mat.:] 2259.20. [Contract Price:] 3200.00
No. 283 [#283p] - 1911. 30ft Motor (Premier) [for] ALOHA A.C. James. 2974.84 [Time & Materials] + 33 1/3 [% Shop Overhead] x 45% [Profit Margin] = [$]5751.35. [Time & Mat.:] 2974.84. [Contract Price:] 5750.00
No. 292 [#292p] - 1912. 40ft Motor (8 cyl Sterling) [for] F.L. Dunne. 4630.47 [Time & Materials] + 33 1/3 [% Shop Overhead] x 55% [sic, i.e. 30% Profit Margin] = [$]8019.64. [Time & Mat.:] 4630.47. [Contract Price:] 8000.00
No. 296 [#296p] - 1914. 30ft Motor Launch (Stillson) Stock HMCo inventoried at 3,500. 2185.60 [Time & Materials] + 33 1/3 [% Shop Overhead] x 20% [Profit Margin] = [$]3496.95. [Time & Mat.:] 2185.60
No. 291 [#291p] - 1912. 50ft Motor Launch (2 Sterlings) Admirals Barge USN. 8141.40 [Time & Materials] + 33 1/3 [% Shop Overhead] x 18% [Profit Margin] = [$]12[8]08.57. [Time & Mat.:] 8141.40. [Contract Price:] 12000.00
No. 295 [#295p] - 1914. 19 1/2ft Motor Launch (Model E Sterling) W.K. Vanderbilt. 1240.68 [Time & Materials] + 33 1/3 [% Shop Overhead] x 22% [Profit Margin] = [$]2018.17. [Time & Mat.:] 1240.68. [Contract Price:] 2000.00
[Time & Materials:] 44757.68 [sic, i.e. 44857.68]. [Contract Price:] 80625.00
[p. 2]
[Unreadable]
Time & Material for 15 boats cost 44,757.68
adding 33 1/3% average for shop 14,919.23
makes shop cost 59,676.91
To equal contract price have to add about 35% = 20886.91733
Total 80,563.82. [Undated, between 1915 (when #313p, the latest boat on this list, was built) and 1919 (when #367p CORSAIR, the first launch not on this list, was built and a price for her had to be determined).]" (Source: Herreshoff, N.G. (?) (creator). Cost Estimate. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDED1_00160. Folder [no #]. No date (between 1915 and 1919 ?).)
① ②

"[Item Transcription:] [Penciled trial run summary on verso of envelope to NGH in Bristol, R. I. postmarked September 27, 1920:] Trials of 26[ft], 28[ft] & 30[ft] Launches. 1898 - 1912. N.G.H.
197 [#197p]. 26ft. 13.10[mph = 11.38kn]. 225lbs.
198 [#198p]. 26ft. 12.49[mph = 10.85kn].
199 [#199p]. 28ft. 13.02[mph = 11.31kn]. 210lbs.
199 [#199p]. 28ft. 16.02[mph = 13.92kn]. 240lbs.
202 [#202p]. 30ft. 15.35[mph = 13.34kn]. 235lbs.
202 [#202p]. 30ft. 15.50[mph = 13.47kn]. 245lbs.
200 [#200p]. 28ft. 14.35[mph = 12.47kn].
201 [#201p]. 28ft. 14.25[mph = 12.38kn].
214 [#214p]. 26ft. 14.60[mph = 12.69kn]. 240lbs.
214 [#214p]. 26ft. 13.47[mph = 11.71kn]. about 235lbs.
220 [#220p]. 28ft. 14.98[mph = 13.02kn].
227 [#227p]. [30ft]. 13.82[mph = 12.01kn].
?. 28ft. 14.50[mph = 12.60kn].
239 [#239p]. 28ft. 13.22[mph = 11.49kn]. Required 10k[nots].
?. 26ft. 12.50[mph = 10.86kn].
239 [#239p]. 28ft. 12.40[mph = 10.78kn]. Not full speed.
246 [#246p]. 28ft. 13.55[mph = 11.77kn].
?. 28ft. 14.46[mph = 12.57kn].
275 [#275p]. 28ft. 10.80[mph = 9.38kn]. Not full speed.
274 [#274p]. 27ft. 14.66[mph = 12.74kn]. [More calculations on other side.] [Note: Every launch listed above was built from Model 424 --- as if this was an attempt to assess the speed of launches built from this model and thus judge the capabilities of the model.]" (Source: Herreshoff, N. G. (creator). Penciled Note. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum Item MRDE03_03510. Folder [no #]. No date (1920-09-28 or later).)
① ②

Note: This list of archival documents contains in an unedited form any and all which mention #274p Haulrey Jr. [Launch for St. S. Hatuey / Houtrey] even if just in a cursory way. Permission to digitize, transcribe and display is gratefully acknowledged.

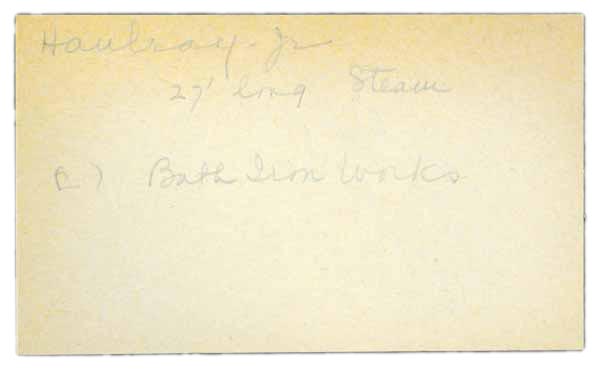

• Haulrey Jr (HMCo-made index card)

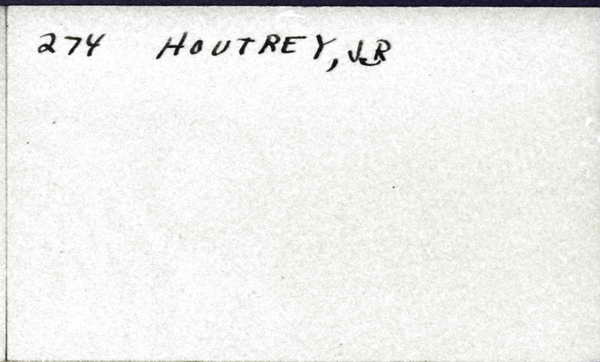

• Haulrey Jr (MIT Museum-made index card)

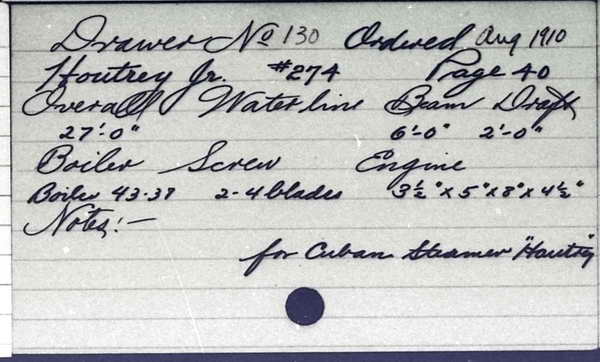

• Note: The vessel index cards comprise two sets of a total of some 3200 cards about vessels built by HMCo, with dimensions and information regarding drawings, later or former vessel names, and owners. They were compiled from HMCo's early days until 1920 and added to in later decades, apparently by Hart Nautical curator William A. Baker and his successors. While HMCo seems to have used only one set of index cards, all sorted by name and, where no name was available, by number, later users at MIT apparently divided them into two sets of cards, one sorted by vessel name, the other by vessel number and greatly expanded the number of cards. Original HMCo cards are usually lined and almost always punched with a hole at bottom center while later cards usually have no hole, are unlined, and often carry substantially less information. All cards are held by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass.
