HMCo #238p [Launch for U.S.S. Eagle]

Particulars

Construction_Record_Title.jpgName: [Launch for U.S.S. Eagle]
Type: Steam Launch
Designed by: NGH
Contract: 1903-8
Construction: Wood (Mahogany)
LOA: 28' 0" (8.53m)
LWL: 27' 9" (8.46m)
Beam: 6' 0" (1.83m)
Draft: 1' 10" (0.56m)
Propulsion: Steam, Herreshoff, 48 h.p. Triple exp., 3 cyl. (3 1/2" & 5" & 8" bore x 4 1/2" stroke)
Boiler: Bent Tube; [Plan]43-37
Propeller: Diameter 22", #2
Built for: U.S. Navy
Note(s) in HMCo Construction Record: Mahog. launch. extra W-tank for U.S.N. "Eagle"

Note: Particulars are primarily but not exclusively from the HMCo Construction Record. Supplementary information not from the Construction Record appears elsewhere in this record with a complete citation.


Model

Model #424Model number: 424
Model location: H.M.M. Model Room West Wall Left

Vessels from this model:
30 built, modeled by NGH
#197p [Steam Tender for U.S.C.S. Yankton] (1898)
#198p [Steam Tender for U.S.C.S. Yankton] (1898)
#199p [Steam Tender for U.S.C.S. Eagle] (1898)
#200p [Steam Tender for U.S.C.S. Yosemite] (1899)
#201p [Steam Tender for U.S. Coast Survey] (1899)
#202p [Steam Tender for U.S.C.S. Vixen] (1899)
#204p [Launch for St. Y. Valiant] (1899)
#214p Isis [Launch for St. Y. Isis] (1902)
#220p Atala (1902)
#227p [Launch for St. Y. Yacona] (1902, Extant)
#233p Delaware Junior [Launch for St. Y. Delaware] (1903)
#237p North Star II [Launch for St. Y. North Star II] (1903)
#238p [Launch for U.S.S. Eagle] (1903)
#239p [Launch for U.S.S. Vixen] (1903)
#240p 240 (1904, Extant)
#241p [Launch for St. Y. Haida] (1903)
#242p Breeze (1904)
#246p [Steam Launch for U.S.S. Yankton] (1904)
#255p Electra Jr. [Launch for St. Y. Electra] (1906)
#257p [Gannet (? Launch for St. Y. Electra)] (1907)
#262p [Launch for St. Y. Iolanda] (1908)
#263p Cassandra Jr. [Launch for St. Y. Cassandra] (1908)
#265p Premier (1908)
#266p Polyana (1908)
#270p Wanderer Jr. [Launch for St. Y. Wanderer] (1909)
#271p Diana (1909)
#272p [Launch for St. Y. Iolanda] (1909)
#273p [Launch for St. Y. Iolanda] (1910)
#274p Haulrey Jr. [Launch for St. S. Hatuey / Houtrey] (1910)
#275p [Launch for U.S.S. Scorpion] (1910)

Original text on model:
"[#197] Model made 1897 and changed in fall 1897 26' long frame spaces 9 3/4
[#198] 198 ditto everything
[#199] 199 28' long frame spaces 10 1/2
[#200] 200 ditto all the way
[#201] 201 ditto all the way
[#202] 202 30' long frames spaces 10 1/2
[#204] 204 ditto all the way
[#227] 227 30 YACOMA [sic, i.e. Yacona]
[#233] no number [should be 233] 28 DELEWARE
[#238] 239 [should be 238] 28 US EAGLE
[#239] dash [should be 239] 26" [should be 28] VIXEN
[#240] 240 30' by 5' "240" gasoline
[#246] 246 28' USN
[#262] 262 28' M plant [unreadable name]
[#263] 263 34' Cassandra
[#265] 34? J.B.H. Premier gasoline [i.e. #265]
[#???] ? 34 by 5 gasoline [this is apparently another reference to #265p Premier]
[#270] ? 28 WANDERER [should be 270]
[#???] ? 34' ILONDA ? [sic, i.e. Morton Plant's steamyacht IOLANDA] 1909
[#255] also 2 [unreadable] for ELECTRA [sic, i.e. #255 and #257] and 1 for ILONDA [sic, i.e. Morton Plant's steamyacht IOLANDA]
[#257]
[#272?]
[#273] 273 35' ILONDA [sic, i.e. Morton Plant's steamyacht IOLANDA]
[#274] 274 Sept. 1910 Cuban [sic, i.e. Haulrey Jr.]
[#275] 275 Oct 1910 28' USN SCORPION" (Source: Original handwritten annotation on model. Undated.)

Model Description:
"26' steam launch of 1898 for the coast survey vessel Yankton. Others built of various sizes over the next dozen years, with scale changes, including the 30' gasoline launch 240 that is now in the Herreshoff Marine Museum's Hall of Boats." (Source: Bray, Maynard. 2004.)

Note: Vessels that appear in the records as not built, a cancelled contract, a study model, or as a model sailboat are listed but not counted in the list of vessels built from a model.


Offsets

Offset booklet number(s): HH.4.030

Offset booklet contents:
#198 - #202, #233, #237 - #242, #246, #263, #266, #271 [steam & gasoline launches].


Offset Booklet(s) in Haffenreffer-Herreshoff Collection. Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass. (Restricted access --- see curator.)

Drawings

Main drawing Dwg 002-011 (HH.5.00011) Explore all drawings relating to this boat.

List of drawings:
   Drawings believed to have been first drawn for, or being first referenced to
   HMCo #238p [Launch for U.S.S. Eagle] are listed in bold.
   Click on Dwg number for preview, on HH number to see at M.I.T. Museum.
  1. Dwg 043-037 (HH.5.03387); Boiler for No. 197 (1898-06-21)
  2. Dwg 002-011 (HH.5.00011); Construction Dwg > Steam Launch # 199, 28' Long (1898-11-21)
  3. Dwg 008-022 (HH.5.00720): Shaft for 28' Launch 199, 200, 201 (1898-11-21)
  4. Dwg 082-052 (HH.5.06325): Awnings for Launches (1903-10-21)
Source: Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass. Haffenreffer-Herreshoff Collection. Together with: Hasselbalch, Kurt with Frances Overcash and Angela Reddin. Guide to The Haffenreffer-Herreshoff Collection. Francis Russell Hart Nautical Collections, MIT Museum, Cambridge, Mass., 1997. Together with: Numerous additions and corrections by Claas van der Linde.
Note: The Haffenreffer-Herreshoff Collection is copyrighted by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass. Permission to incorporate information from it in the Herreshoff Catalogue Raisonné is gratefully acknowledged. The use of this information is permitted solely for research purposes. No part of it is to be published in any form whatsoever.

Supplement

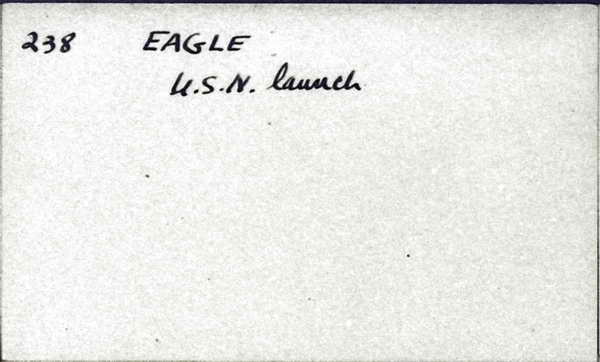

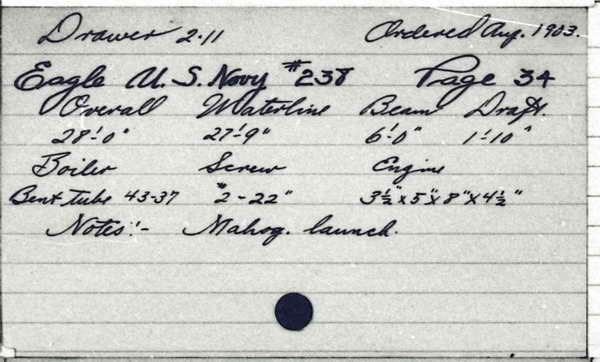

From the 1920 and earlier HMCo Index Cards at the MIT Museum
  • Note: The vessel index cards comprise two sets of a total of some 3200 cards about vessels built by HMCo, with dimensions and information regarding drawings, later or former vessel names, and owners. They were compiled from HMCo's early days until 1920 and added to in later decades, apparently by Hart Nautical curator William A. Baker and his successors. While HMCo seems to have used only one set of index cards, all sorted by name and, where no name was available, by number, later users at MIT apparently divided them into two sets of cards, one sorted by vessel name, the other by vessel number and greatly expanded the number of cards. Original HMCo cards are usually lined and almost always punched with a hole at bottom center while later cards usually have no hole, are unlined, and often carry substantially less information. All cards are held by the Francis Russell Hart Nautical Collections of the MIT Museum in Cambridge, Mass.
From the 2000 (ca.) Transcription of the HMCo Construction Record by Vermilya/Bray

Year: 1903
E/P/S: P
No.: 238
OA: 28"
LW: 27' 9"

Source: Vermilya, Peter and Maynard Bray. "Transcription of the HMCo. Construction Record." Unpublished database, ca. 2000.

Note: The transcription of the HMCo Construction Record by Peter Vermilya and Maynard Bray was performed independently (and earlier) than that by Claas van der Linde. A comparison of the two transcriptions can be particularly useful in those many cases where the handwriting in the Construction Record is difficult to decipher.

Research Note(s)

"U.S.S. Eagle was built for Frederic Gallatin as the 177.6ft LOA steam yacht Almy in 1896 by Harlan and Hollingsworth, Wilmington, Delaware. She was sold to the U.S. Navy in 1898 for the Spanish American War and served until 1920." (Source: van der Linde, Claas. October 26, 2014.)

"Steam engine rating 48hp from undated (1903 or later) diagram by N. G. Herreshoff titled 'Marine Engine. Weights and Prices' in the Halsey C. Herreshoff Collection at the Herreshoff Marine Museum." (Source: van der Linde, Claas. March 24, 2019.)

"Marine Engine of Inclosed Type. 3 1/2 & 5 & 8 x 4 1/2, 825[rpm], 48[hp]." (Source: Herreshoff, N. G. Handwritten List of HMCo-Made Steam Engines. Halsey C. Herreshoff Collection at the Herreshoff Marine Museum, MRDED1_00220. Undated, between 1903 and 1918.)
